Prescription Verification: How an Optical Prescription Lab Prevents Your Most Expensive Remakes

Where Verification Actually Breaks Down

A finished pair of lenses has to survive two translations before it reaches the patient. Each translation is a place where a correct prescription quietly becomes an incorrect lens.

Translation one: the prescription becomes an order

This is transcription, and transcription is where most avoidable errors are born. A minus cylinder gets keyed as plus. An axis of 175 becomes 15 because a digit was clipped. The add lands in the wrong eye. The material defaults to the last order still open on the screen. None of these are clinical mistakes. The refraction was perfect. They’re data-entry mistakes, and they pass through every downstream system as if they were the doctor’s intent.

The lab manufactures exactly what it was told to manufacture. That’s the uncomfortable part: an order-entry error produces a lens that is perfectly made and completely wrong, and it will pass lensometry against the order every time. The only place to catch it is by checking the order against the original written Rx before it’s ever submitted, which is why disciplined, efficient prescription lens ordering through a single integrated platform prevents more remakes than any bench check downstream.

Translation two: the order becomes a physical lens

Even a flawless order can come back outside tolerance. Surfacing drift, an axis mounted a few degrees off, a base-curve substitution, an optical center placed where the layout said rather than where the patient’s pupils actually sit. This is the check most offices do run (dropping the lens on a lensmeter), but running it and running it correctly are different things.

Verifying a single-vision sphere on an automated lensmeter takes ten seconds and rarely lies. Verifying a compound progressive with prism, a decentered OC, and a 2.50 add is a different task, and a green readout on the distance reference point tells you almost nothing about whether the corridor, add, and fitting cross are where they belong.

The Standard You’re Actually Verifying Against

“Correct” is not a feeling. It’s ANSI Z80.1, the American National Standard that defines how far a finished lens may deviate from the prescription and still be dispensable. If your staff can’t state these tolerances from memory, they’re verifying against instinct, which means marginal lenses get rejected and out-of-tolerance lenses get dispensed, roughly at random.

The tolerances that matter most at the bench:

• Sphere / meridian power: ±0.13 D for the meridian of highest absolute power at or below 6.50 D; a small percentage tolerance above that. Most single-vision errors that reach a patient are well outside this, meaning they were verifiable and simply weren’t caught.
• Cylinder axis: the allowable error tightens as the cylinder grows. A 0.25 D cyl tolerates about ±14°; a cylinder over 1.50 D tolerates only ±2°. This is the tolerance most often misjudged, because staff apply a “close enough” eyeball to axis without accounting for cylinder magnitude.
• Add power: roughly ±0.12 D per ANSI. An add that reads 0.25 D strong is out of tolerance and is a leading cause of progressive non-adaptation that “passes” a casual lensometer check.
• Optical center / PD and prism: horizontal and vertical OC placement is bounded by the prism it induces. A lens that is optically perfect but decentered induces unwanted prism the patient will feel long before they can name it.

The point of knowing the numbers isn’t bureaucratic. It’s that tolerances stack. A lens can sit at the edge of acceptable on sphere, cylinder, and axis simultaneously, each individually “passing,” and the summed optical error is what the patient experiences as “I can see, but something’s off.” Knowing how prescription lenses are made, from digital surfacing through the finishing and edging step, tells you exactly where each of those deviations gets introduced.

Why a “Passing” Lens Can Still Fail the Patient

The tolerances above are manufacturing tolerances, not comfort guarantees. Three failure modes hide inside a technically passing lens:

High-cylinder axis error. At 2.00 D of cylinder, a 3° axis error, within casual verification range, produces a meaningful cross-cylinder effect the patient reads as distortion, especially in oblique astigmatism. The lens passes a glance. It fails the wearer.

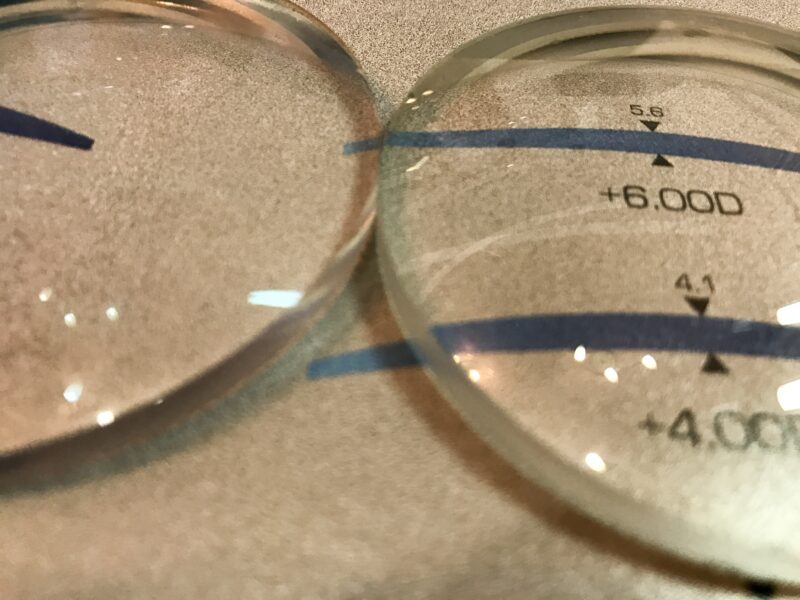

Add strength on the near check. Many verifications confirm distance power and stop. An add that’s 0.25 D off changes the working distance the patient’s brain calibrated to. On a custom progressive lens, it also shifts the effective corridor. The patient adapts poorly, blames the design or your fit, and you eat a remake that started as a verification shortcut, the exact pattern walked through in this progressive lens troubleshooting breakdown.

Optical center height on a progressive. A progressive verified only at the distance reference point can have a fitting cross set 2 mm low. Distance power is fine. The patient hunts for the reading zone, tips their chin, and returns in a week. Nothing on a standard power check would have flagged it, but a layout-to-pupil comparison would have.

This is why verification is a clinical act, not a clerical one. The reader who understands why each tolerance exists catches the passing-but-wrong lens that a checklist alone lets through.

The Two-Minute Verification Protocol

You don’t need more time. You need a fixed sequence, run the same way every time, at both checkpoints. Consistency is what turns verification from a gesture into a control.



Checkpoint 1, before the order leaves your office (30 seconds):

1. Read the written Rx aloud against the keyed order, field by field: OD sphere/cyl/axis/add, then OS, then PD and any prism.
2. Confirm cylinder sign convention matches what your lab expects: a flipped sign with un-transposed axis is a classic, invisible error.
3. Confirm material, design, and coating are what you selected, not a carried-over default.



Checkpoint 2, when the finished lens returns (90 seconds):

1. Lensometer both lenses: distance power first, then rotate to confirm cylinder axis with attention to the ANSI band for that cylinder magnitude.
2. Verify the add at the near reference point: actually move to it; don’t assume it.
3. Confirm optical center and fitting-cross height against the layout and, for progressives, against the patient’s measured pupil position.
4. Inspect for prism you didn’t order, a quick check that OC placement matches PD.



The lab you work with determines how often Checkpoint 2 turns up a problem in the first place. A lab that verifies every lens in-house before it ships (on instrumentation accurate to the micron rather than a pass/fail readout) is doing your second checkpoint before the tray leaves the building. At MIA LAB, finished lenses are checked on Focovision and Visionix lensmeters to ±1 micron accuracy against a theoretical map built from the prescription input, which is the difference between catching surfacing drift on the bench and catching it at your dispensing table. That’s also what separates a true optical prescription lab and long-term optical lab partner from a commodity supplier: your verification still matters. It just stops being the only line of defense between a manufacturing tolerance and your patient.

The two-minute check doesn’t slow your practice down. The remake it prevents does: a second order, a second wait, a second conversation, and a patient who now silently wonders whether the first pair being wrong was really the lab’s fault or yours.

Verification isn’t the step that proves the lens is right. It’s the step that decides whether you find the error, or the patient does. Only one of those is recoverable.

Frequently Asked Questions

• What’s the difference between verifying the order and verifying the finished lens?
  Verifying the order compares your keyed submission against the doctor’s written prescription; it catches transcription errors before manufacturing. Verifying the finished lens compares the physical product against the order and against ANSI Z80.1; it catches manufacturing deviation. They fail for different reasons, so doing one does not cover the other.

• Which prescription errors most commonly reach the patient?
  Transcription errors at order entry (axis digit errors, cylinder sign flips, add in the wrong eye, defaulted material) and uncaught axis error on higher-cylinder lenses. Both survive a casual power check because the lens is internally consistent with a wrong order or sits just inside a misjudged tolerance.

• What are the ANSI Z80.1 tolerances I should verify against?
  The critical ones are sphere/meridian power (±0.13 D at or below 6.50 D), cylinder axis (tightening from about ±14° at low cylinder to ±2° above 1.50 D), add power (about ±0.12 D), and optical-center placement bounded by induced prism. Always confirm the current edition of the standard, as tolerance tables are periodically revised.

• Why does cylinder axis tolerance depend on cylinder power?
  Because the visual impact of an axis error scales with cylinder magnitude. A few degrees off on a 0.25 D cylinder is optically trivial; the same few degrees on a 2.00 D cylinder induces a cross-cylinder effect the patient perceives as distortion. Applying one fixed “close enough” to axis regardless of cylinder is a common and costly verification mistake.

• Can a lens pass verification and still cause non-adaptation?
  Yes. Manufacturing tolerances allow small deviations that stack, and comfort depends on factors a power check doesn’t measure: add strength at the true near point, optical-center and fitting-cross height, and prism from decentration. A lens within tolerance on every field can still leave the patient with a “something’s off” complaint, which is why verification has to be understood clinically, not just mechanically.

• Does using an in-house optical prescription lab reduce verification errors?
  It reduces the manufacturing-side errors you have to catch, because a lab that verifies every finished lens in-house before shipping runs your second checkpoint before the order reaches you. It does not replace your order-entry check. That error originates in your office and can only be caught in your office.
